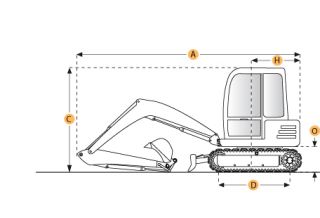

A. Shipping Length of Unit | 16.7 ft in | 5090 mm |
C. Shipping Height of Unit | 8.2 ft in | 2500 mm |
I. Max Cutting Height | 17 ft in | 5180 mm |
J. Max Loading Height | 12.3 ft in | 3750 mm |
K. Max Reach Along Ground | 16.8 ft in | 5125 mm |
L. Max Vertical Wall Digging Depth | 7.7 ft in | 2335 mm |
M. Max Digging Depth | 10.3 ft in | 3150 mm |
A. Shipping Length of Unit | 16.9 ft in | 5155 mm |
C. Shipping Height of Unit | 8.2 ft in | 2500 mm |
I. Max Cutting Height | 17.7 ft in | 5410 mm |
J. Max Loading Height | 13.2 ft in | 4020 mm |
K. Max Reach Along Ground | 18.1 ft in | 5505 mm |
L. Max Vertical Wall Digging Depth | 8.8 ft in | 2695 mm |
M. Max Digging Depth | 11.4 ft in | 3485 mm |
Dimensions | ||

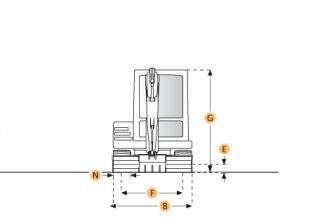

B. Width to Outside of Tracks | 5 ft in | 1520 mm |
D. Length of Track on Ground | 5.3 ft in | 1610 mm |
G. Height to Top of Cab | 8.2 ft in | 2500 mm |
H. Tail Swing Radius | 4.6 ft in | 1415 mm |
O. Counterweight Clearance | 1.9 ft in | 580 mm |
Undercarriage | ||
F. Track Gauge | 4 ft in | 1220 mm |
N. Shoe Size | 11.8 in | 300 mm |
